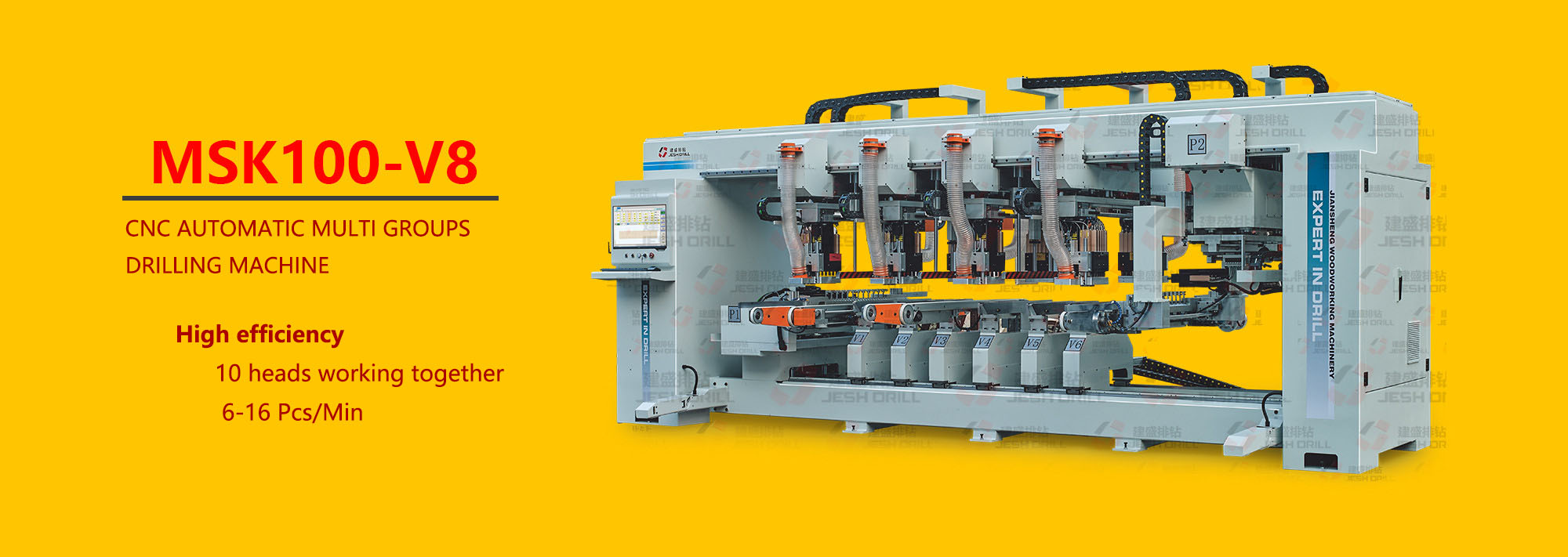

CNC AUTOMATIC MULTI GROUPS BORING MACHINE
Processing length: 390–2500 mm
Processing width: 100–730 mm
Processing thickness: 9–50 mm
Total number of spindles: 144
Spindle speed: 4800 rpm
Max. drilling Dia: 35 mm
Max. drilling depth: 40 mm
Horizontal drill group (left): 1 group
Horizontal drill group (right): 1 group

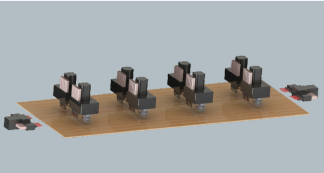

CNC drill group (top): 4 groups (8 pcs head)
Air pressure: 0.5–0.6 MPa
Voltage: 380V / 50Hz
Power: 51.68 kW
Weight: About 5500 kg
Overall dimensions: 5700 mm × 2500 mm × 2530 mm
1. This drilling system consists of 144 independently operable drill spindle, ensuring special drilling, mass production, and custom drilling requirements for flexible drilling.
2. The setting time of the machine is almost of zero, which greatly improves the production efficiency.
3. Linux as OS, system is faster and more stable
4. Importing MPR, DXF drawing, system will do automatic analyzing and generating program.
5. Machine supports barcode scanner also, with that machine is easier for worker’s operation
