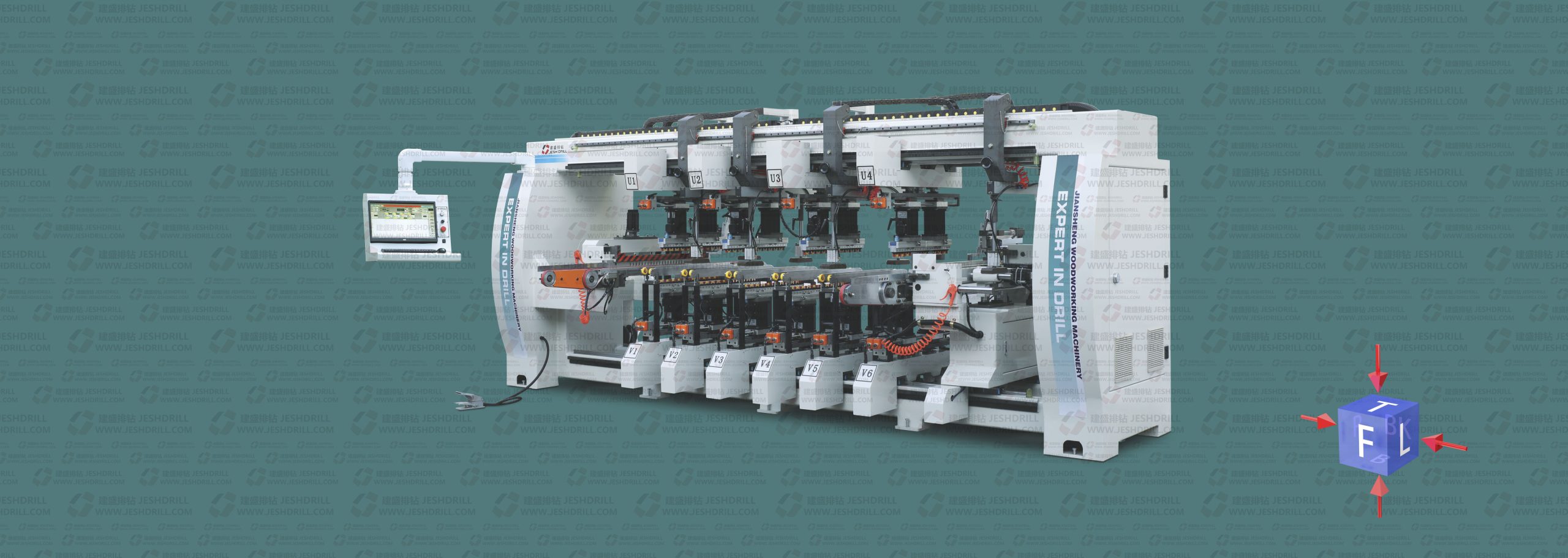

CNC TWELVE ROWS DRILLING MACHINE
Processing Length: 300–2500 mm
Processing Width: 32–672 mm
Plate Thickness: 8–50 mm
Qty. of Spindles: 264
Max. Drilling Dia: 35 mm
Max. Drilling Depth: 50 mm
Spindle Speed: 2840 rpm
Qty. of Horizontal Drill Row (L/R): 2
Qty. of Vertical Drill Row (Top): 4
Qty. of Vertical Drill Row (Bottom): 6
Air Pressure: 0.5–0.6 MPa
Voltage: 380V / 50Hz
Power: 52 kW
Weight: about 4500 kg
Dimensions: 5000×2530×2200 mm
Processing Speed: 13–16 pcs/min
