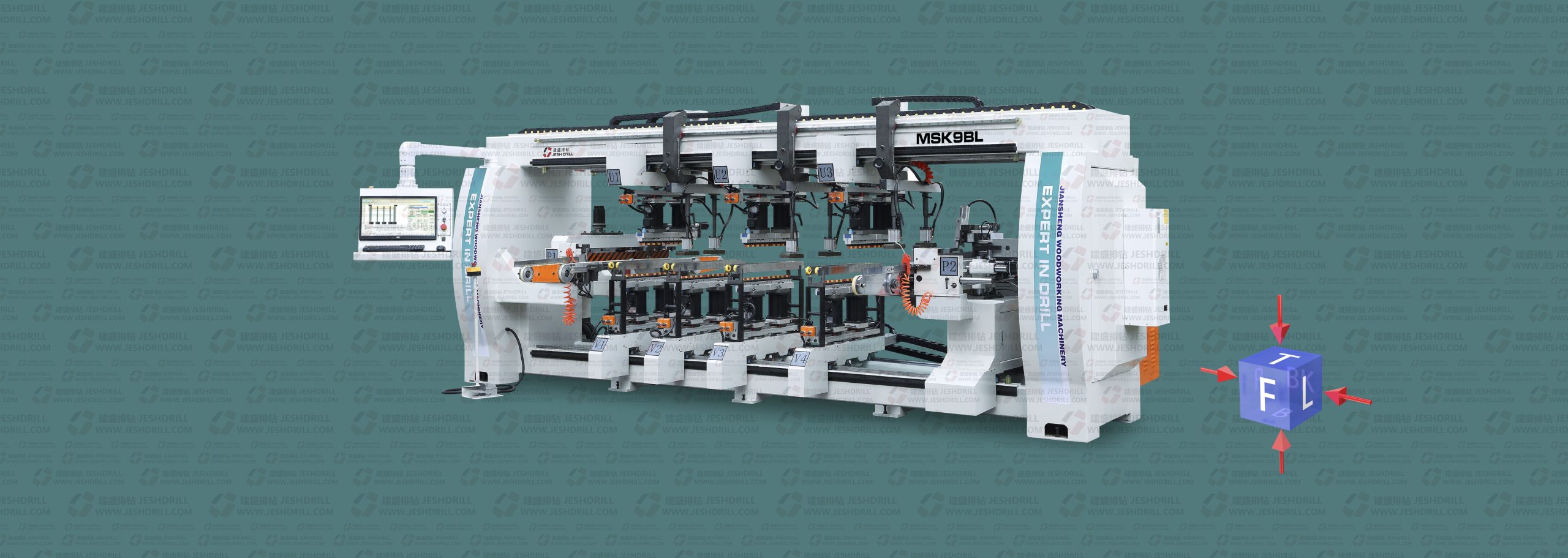

CNC NINE ROWS DRILLING MACHINE
Processing Length: 300–2500mm
Processing Width: 32–672mm
Plate Thickness: 8–50mm
Qty. of Spindles: 198
Max. Drilling Dia: 35mm
Max. Drilling Depth: 50mm
Spindle Speed: 2840rpm
Horizontal Drill Rows (L/R): 2
Vertical Drill Rows (Top): 3
Vertical Drill Row (Bottom): 4
Air Pressure: 0.5–0.6mpa
Voltage: 380V / 50Hz
Power: 38.25Kw
Weight: ~4500kg
Dimensions: 5000×2530×2200mm
Processing Speed: 13–16 pcs/min
