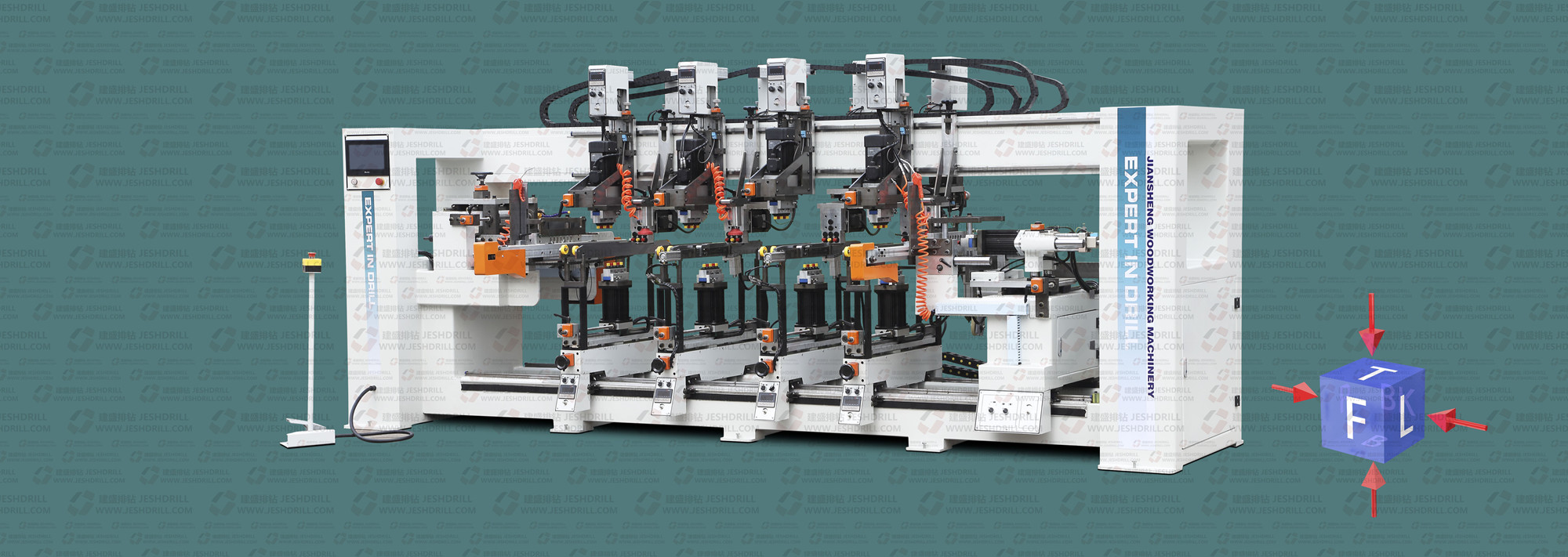

AUTO FEEDING FOURTEEN ROWS BORING MACHINE FOR NARROW PLANK (FIVE FACES)
Max. Center Distance Between Holes: L×B=2440mm×192mm
Min. Center Distance Between Holes: L×B=350mm×32mm
Max. Processing Length: 2440mm
Min. Processing Length: 350mm
Plate Thickness: 8–40mm
Total Number Of Spindles: 66 pcs
Max. Drilling Dia: 35mm (single bit)
Max. Drilling Dia: 13mm (Multi bits)
Max. Drilling Depth: 50mm
Installation Dia. Of Drill Bit Shaft: 10mm
Knife Installation Length: 57mm / 70mm
Spindle Speed: 2840rpm
Qty. Of Horizontal Drilling Row on Left and Right: 2 rows
Qty. Of Vertical Drilling Rows on Top: 4 rows
Qty. Of Vertical Drilling Row On Bottom: 4 rows
Air Pressure: 0.5–0.6mpa
Motor Voltage: 380V / 50Hz
Total Power: 24.55kw
Net Weight: about 4000kg
Overall Dimensions: 5000×2250×2200mm
Feeding Mode: Chain Feeding
Qty. Of Horizontal Drilling Row on Back: 4 rows
