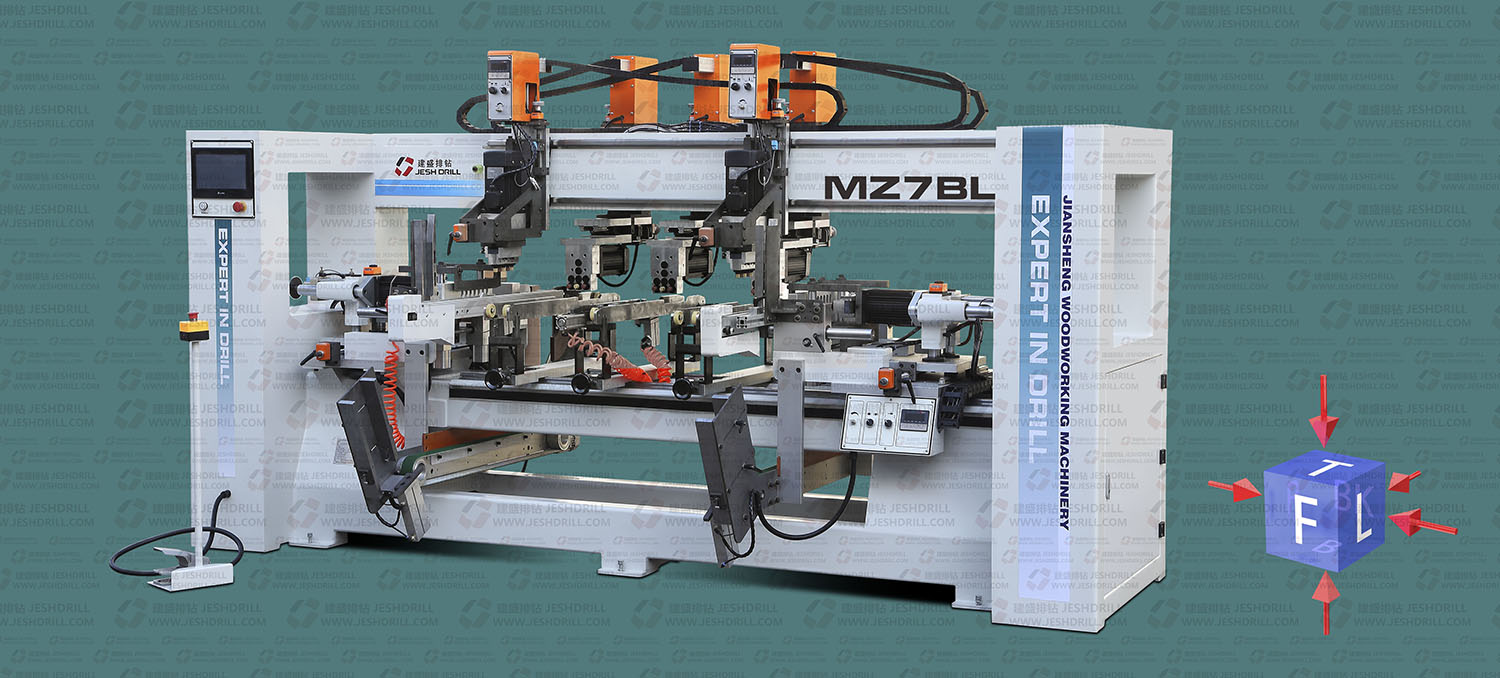

AUTO FEEDING SEVEN ROWS DRILLING MACHINE FOR NARROW PLANK (FOUR SIDES)
Max. Center Distance Between Holes : L*B=1200*250mm
Min. Center Distance Between Holes : L*B=350*60mm
Max. Processing Length : 1200mm
Min. Processing Length : 250mm
Spindle Speed : 2840rpm
Qty. Of Horizontal Drilling Row on Left and Right : 2 rows
Multi Bits Max. Drilling Dia : 15mm
Max. Drilling Depth : 50mm
Installation Dia. Of Drill Bit Shaft : 10mm
Knife Installation Length : 57mm / 70mm
Qty. Of Vertical Drilling Rows on Back : 3 rows
Air Pressure : 0.5-0.6mpa
Motor Voltage : 380V / 50Hz
Total Power : 9kw
Single Bit Max. Drilling Dia : 35mm
Net Weight : about 1200kg
Overall Dimensions : 3000*1100*2000mm
Vertical Drill Row at Top : 3
Plank Thickness : 10-50mm
Qty. Of Spindle : 42
Processing Speed : 7-9 pcs/min
Feeding Mode : Auto Feeding
