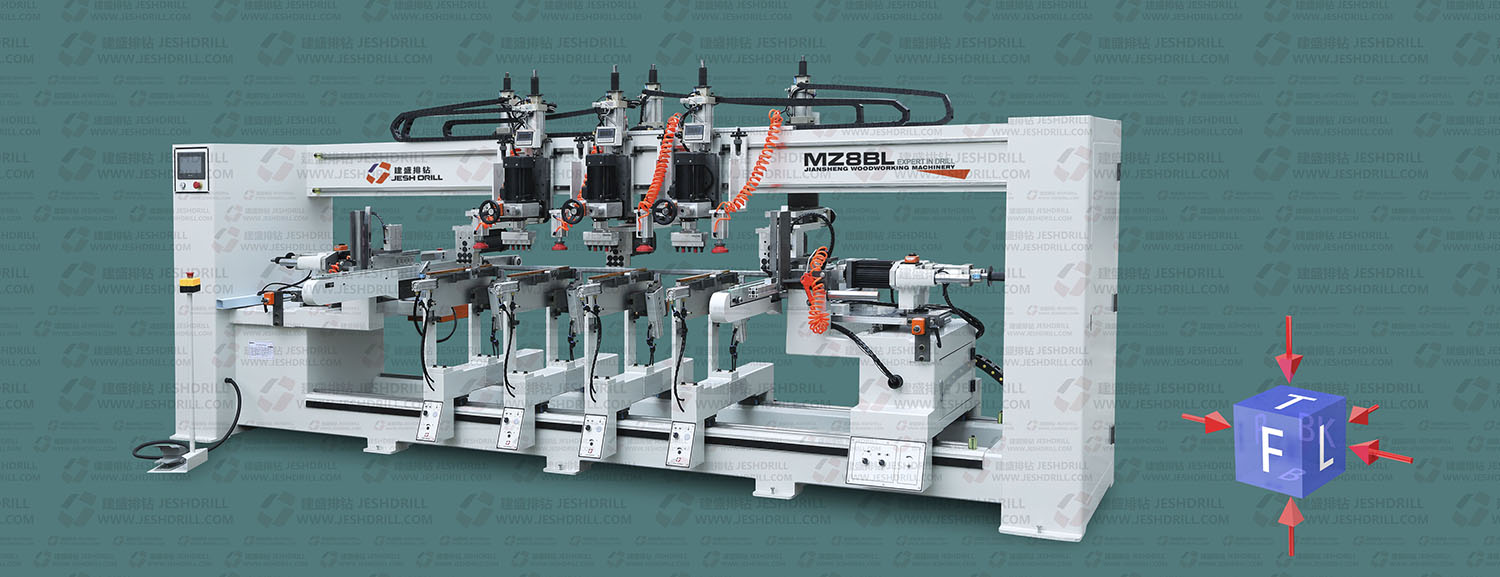

AUTO FEEDING EIGHT ROWS DRILLING MACHINE FOR NARROW PLANK (FOUR SIDES)
Max. Center Distance Between Holes: 2500mm
Min. Center Distance Between Holes: 18mm
Max. Processing Length: 2500mm
Min. Processing Length: 350mm
Spindle Speed: 2840rpm
Qty. Of Horizontal Drilling Row on Left and Right: 2 rows
Single Bit Max. Drilling Dia: 35mm
Multi Bits Max. Drilling Dia: 15mm
Max. Drilling Depth: 50mm
Installation Dia. Of Drill Bit Shaft: 10mm
Knife Installation Length: 57mm / 70mm
Qty. Of Vertical Drilling Rows on Top: 4 rows
Air Pressure: 0.5-0.6mpa
Motor Voltage: 380V / 50Hz
Total Power: 9kw
Net Weight: about 1200kg
Overall Dimensions: 3000*1100*2000mm
Vertical Drill Row at Top: 3
Plank Thickness: 10-50mm
Qty. Of Spindle: 42
Processing Speed: 7-9 pcs/min
Feeding Mode: Auto Feeding
