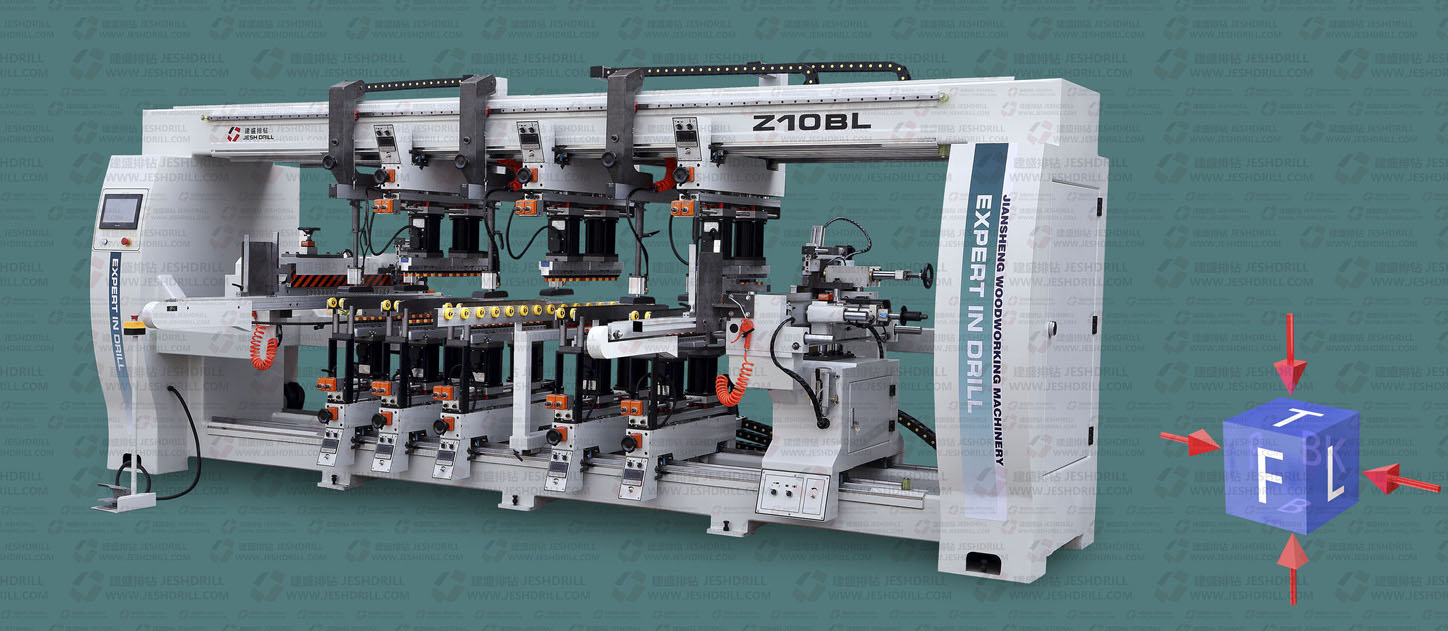

AUTO FEEDING TEN ROWS BORING MACHINE
Max. Center Distance Between Holes: L*B=2500mm*672mm
Min. Center Distance Between Holes: L*B=220mm*32mm
Max. Processing Length: 2500mm
Min. Processing Length: 220mm
Plate Thickness: 8-40mm
Total Number Of Spindles: 220 pcs
Max. Drilling Dia: 35mm (single bit)
Max. Drilling Dia: 13mm (Multi bits)
Max. Drilling Depth: 50mm
Installation Dia. Of Drill Bit Shaft: 10mm
Knife Installation Length: 57mm / 70mm
Spindle Speed: 2840rpm
Qty. Of Horizontal Drilling Row on Left and Right: 2 rows
Qty. Of Vertical Drilling Rows on Top: 3 rows
Qty. Of Vertical Drilling Row On Bottom: 5 rows
Air Pressure: 0.5-0.6mpa
Motor Voltage: 380V / 50Hz
Total Power: 27.55kw
Net Weight: abuot 4000kg
Overall Dimensions: 5000*2250*2200mm
Feeding Mode: Chain Feeding
Single plate processing width: 610mm
Double plate processing width: 60-320mm
