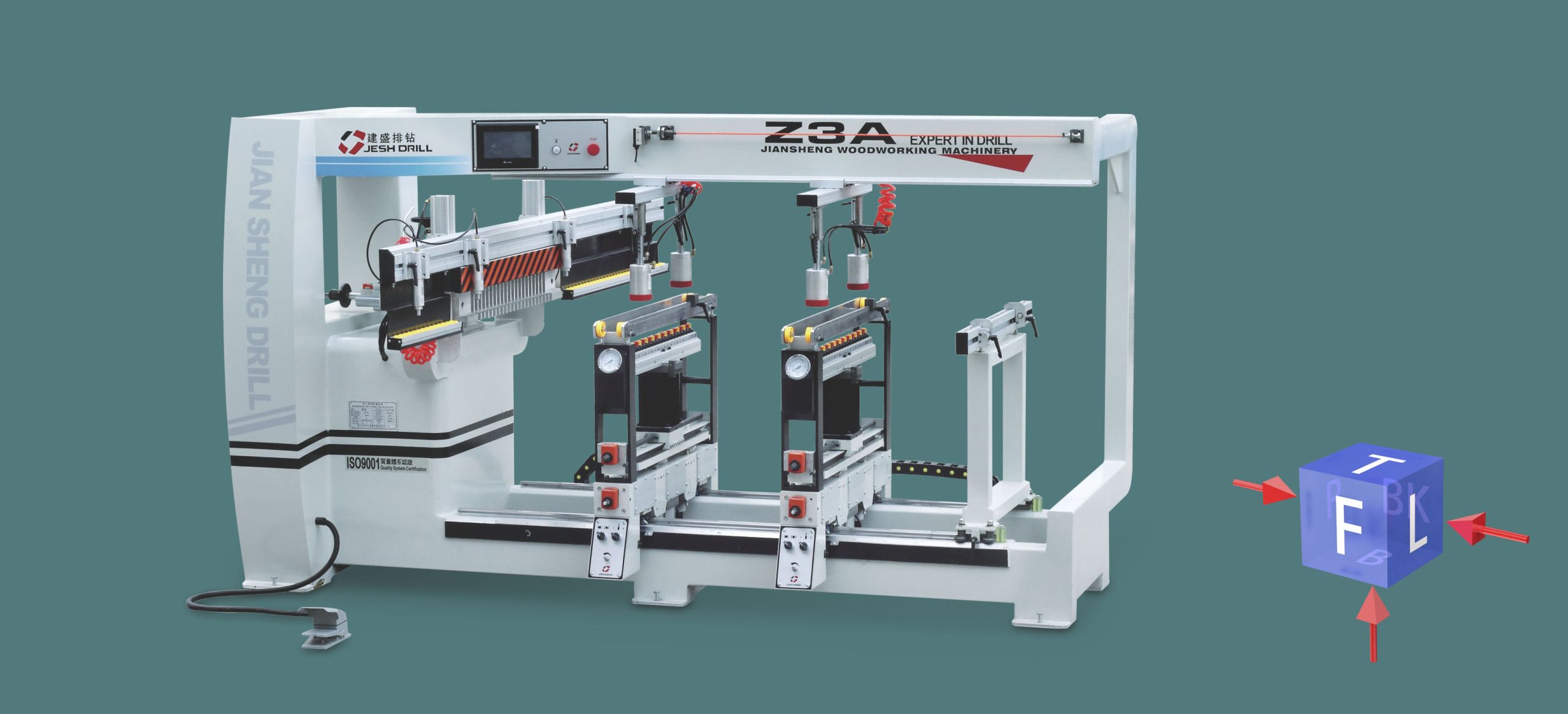

Woodworking three lines boring machine
Max. Center Distance Between Holes: L×B=1650mm×640mm
Min. Center Distance Between Holes: L*B=220mm×32mm
Max. Processing Length: 1650mm
Min. Processing Length: 220mm
Plate Thickness: 8-80mm
Total Number Of Spindles: 63 pcs
Max. Drilling Dia.: 35mm (single bit) 13mm (multi bits)
Max. Drilling Depth: 50mm
Installation Dia. Of Drill Bit Shaft: 10mm
Knife Installation Length: 57mm / 70mm
Spindle Speed: 2840rpm

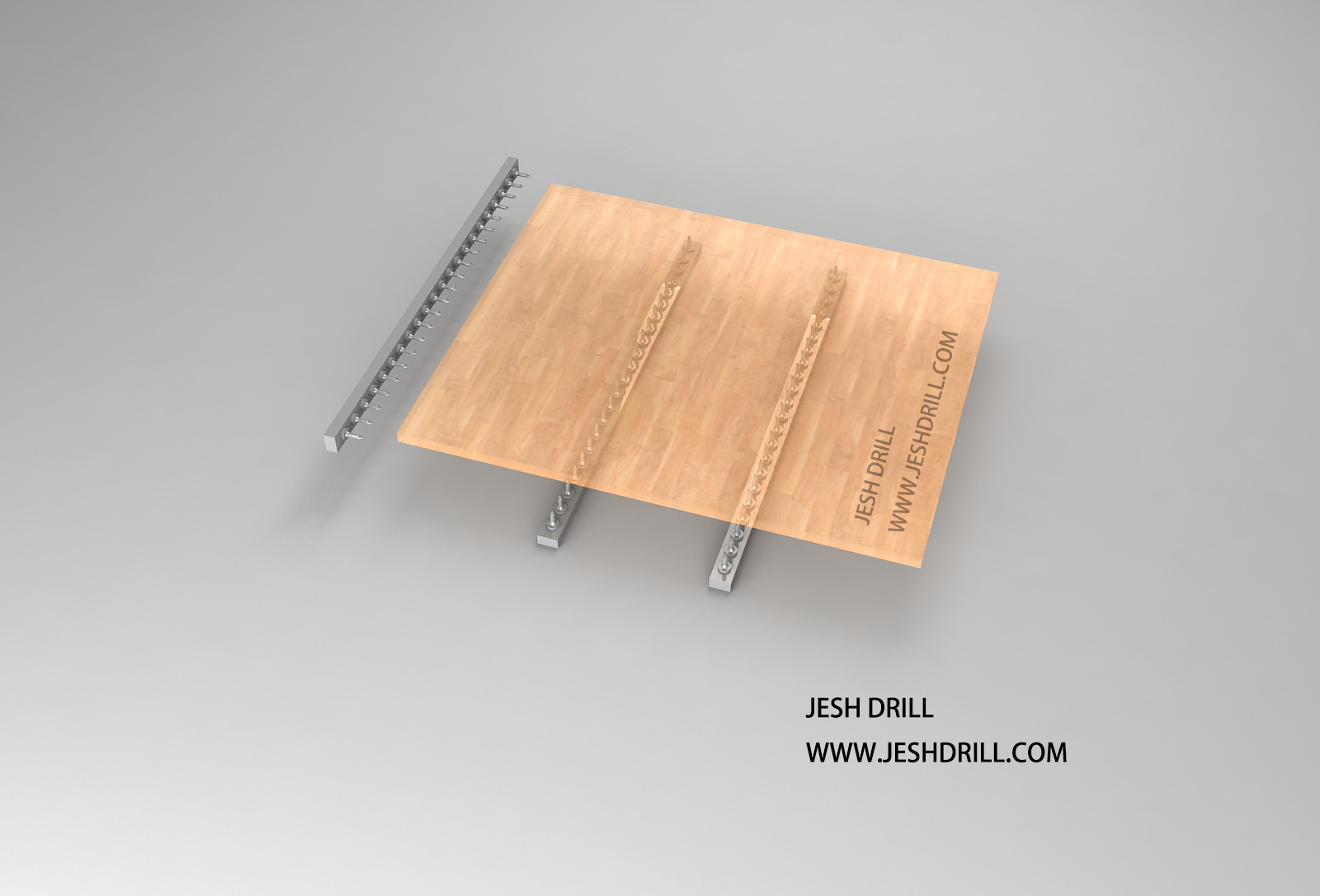

Qty. Of Horizontal Drilling Rows: 1 row
Air Pressure: 0.5-0.6mpa
Motor Voltage: 380V, 50Hz
Total Power: 4.5 kW
Net Weight: about 1000kg
Overall Dimensions: 2700×2500×1650mm
Qty. Of Vertical Up Drilling Rows: 2 rows
