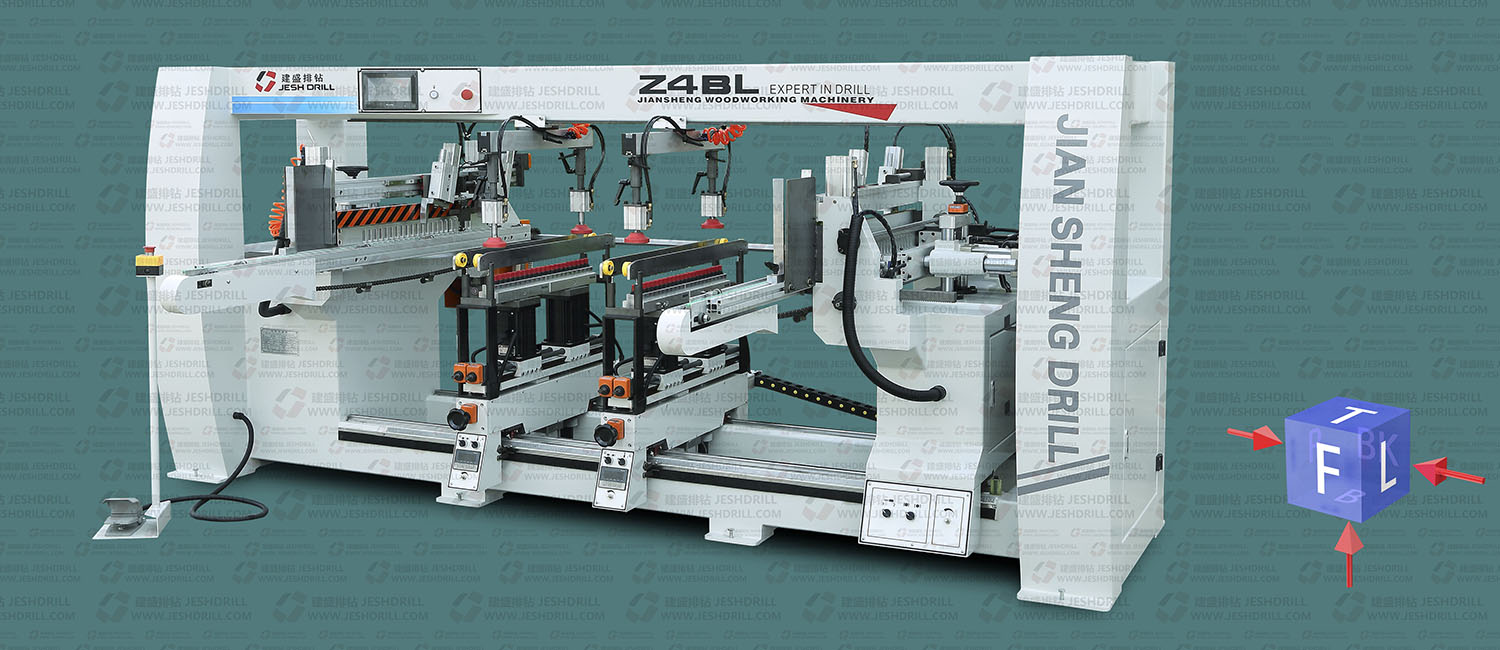

Woodworking four lines auto feeding boring machine
Max. Center Distance Between Holes: L×B=2450mm×672mm
Min. Center Distance Between Holes: L×B=250mm×32mm
Max. Processing Length: 2450mm
Min. Processing Length: 250mm
Plate Thickness: 8-50mm
Total Number Of Spindles: 88 pcs
Installation Dia. Of Drill Bit Shaft: 10mm
Knife Installation Length: 57mm / 70mm
Spindle Speed: 2840rpm
Qty. Of Horizontal Drilling Row: 2 rows

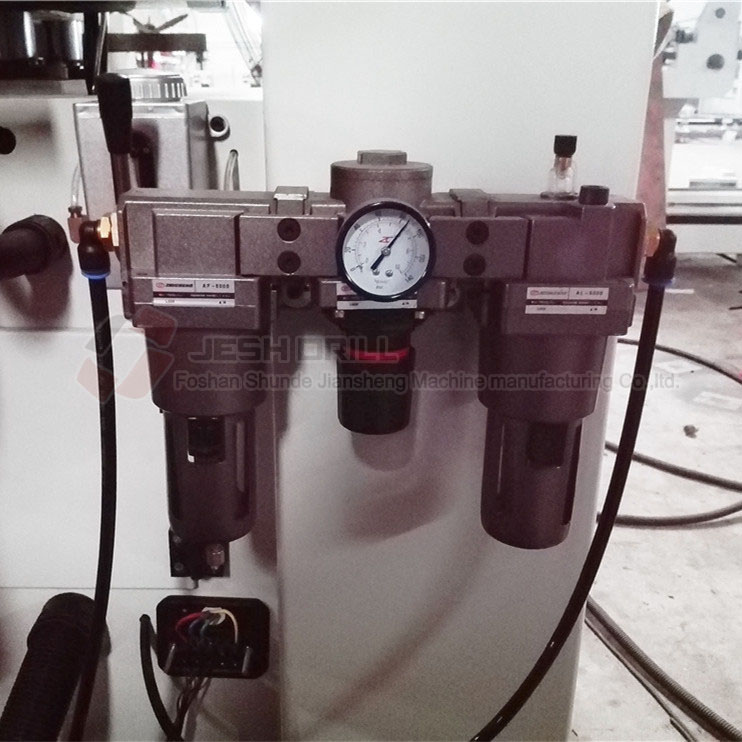

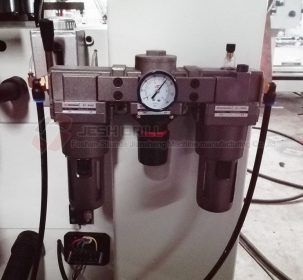

Air Pressure: 0.5–0.6 mpa
Motor Voltage: 380V, 50Hz
Total Power: 10.1 kw
Net Weight: about 1500kg
Max. Drilling Dia.: 35mm (single bit), 13mm (multi bits)
Max. Drilling Depth: 50mm
Overall Dimensions: 4500×2250×1650mm
Qty. Of Vertical Up Drilling Rows: 2 rows
Processing Speed: 13–16 pcs/min

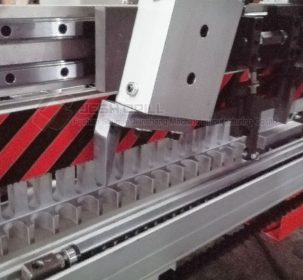

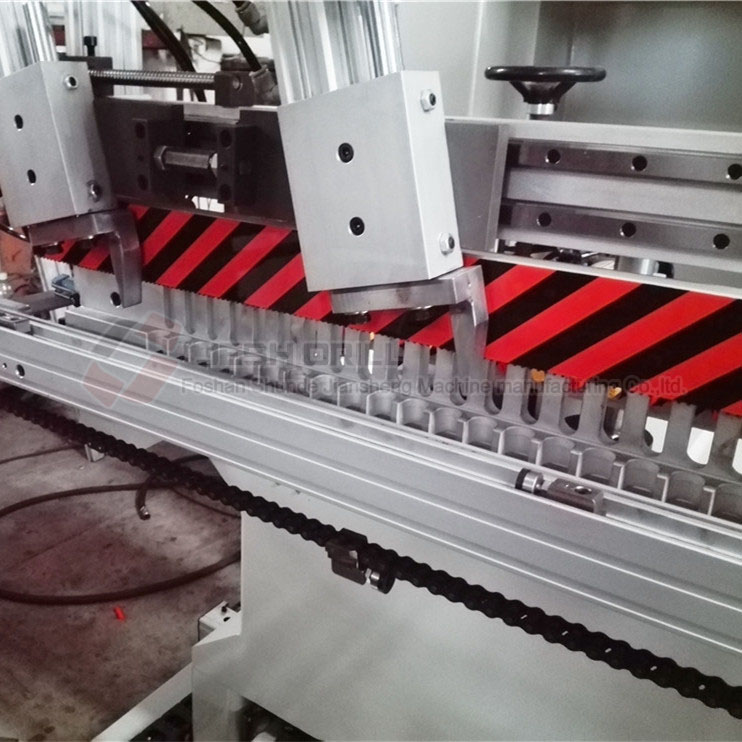

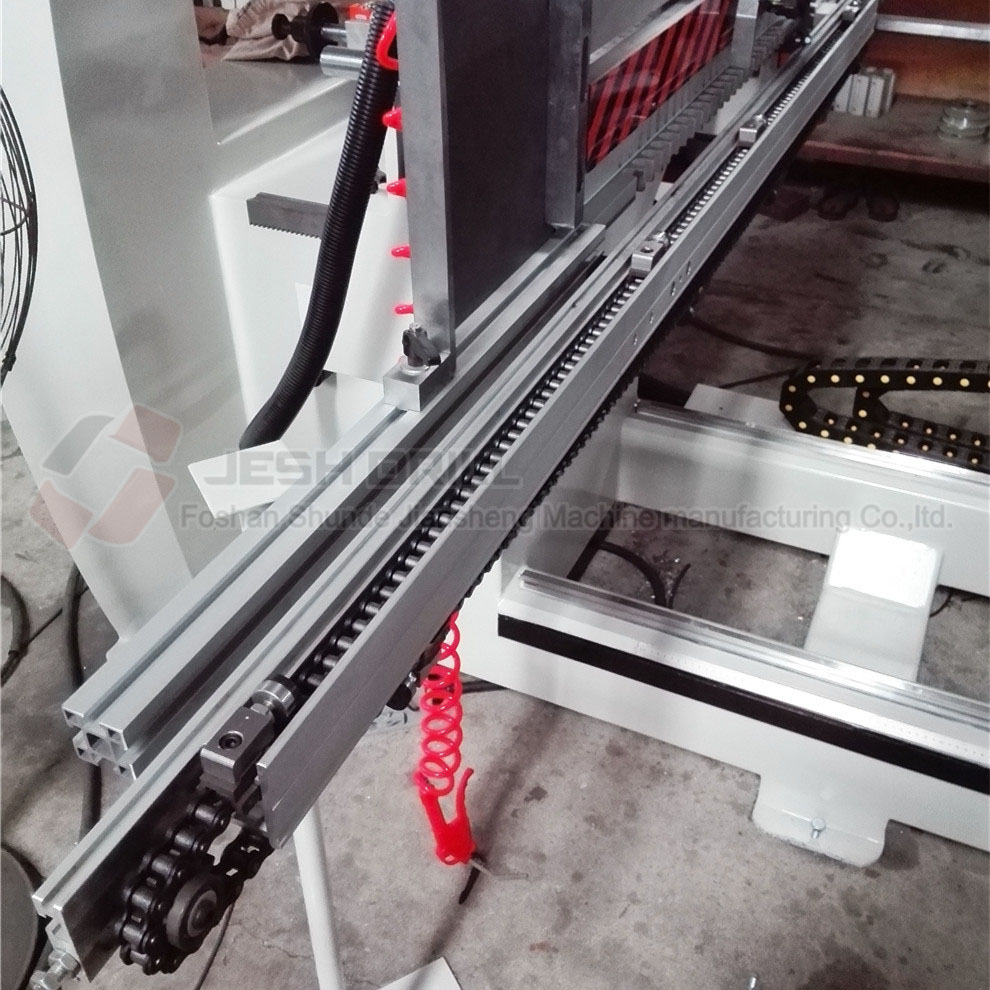

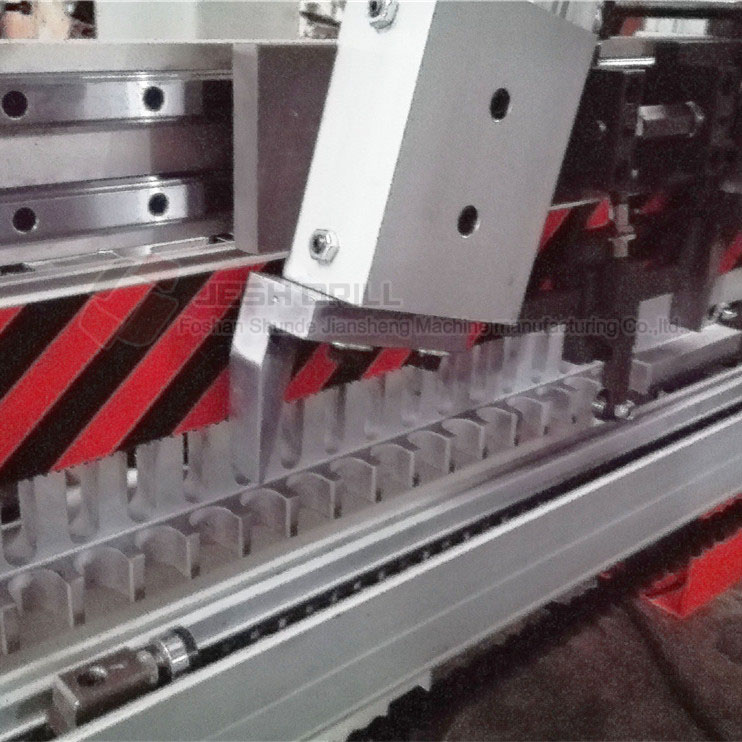

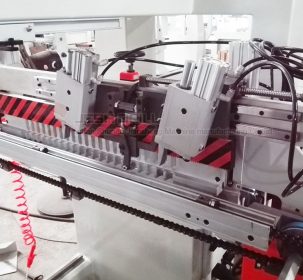

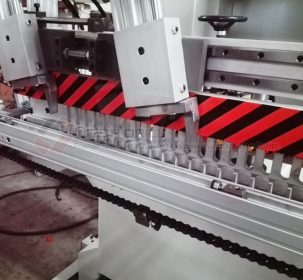

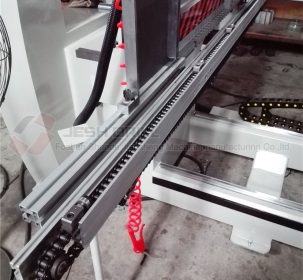

Feeding Mode: Auto Feeding
