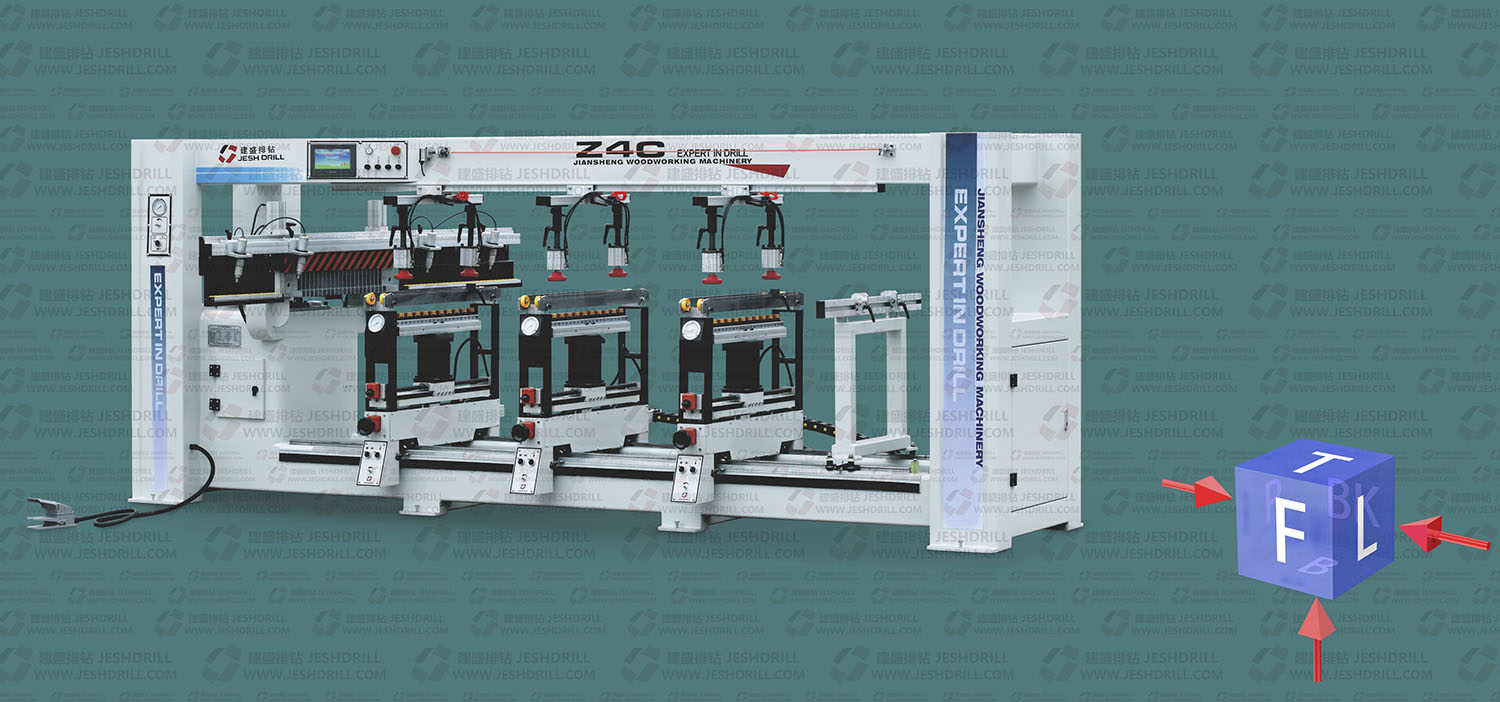

Woodworking four lines boring machine
Max. Center Distance Between Holes: Max. Center Distance Between Holes
Min. Center Distance Between Holes: L×B=220mm×32mm
Max. Processing Length: 2450mm
Min. Processing Length: 220mm
Plate Thickness: 8-80mm
Total Number Of Spindles: 84 pcs
Max. Drilling Dia.: 35mm (single bit), 13mm (multi bits)
Max. Drilling Depth: 50mm
Installation Dia. Of Drill Bit Shaft: 10mm
Knife Installation Length: 57mm / 70mm
Spindle Speed: 2840rpm
Qty. Of Horizontal Drilling Rows: 1 row

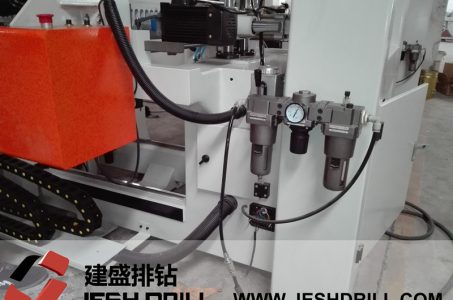

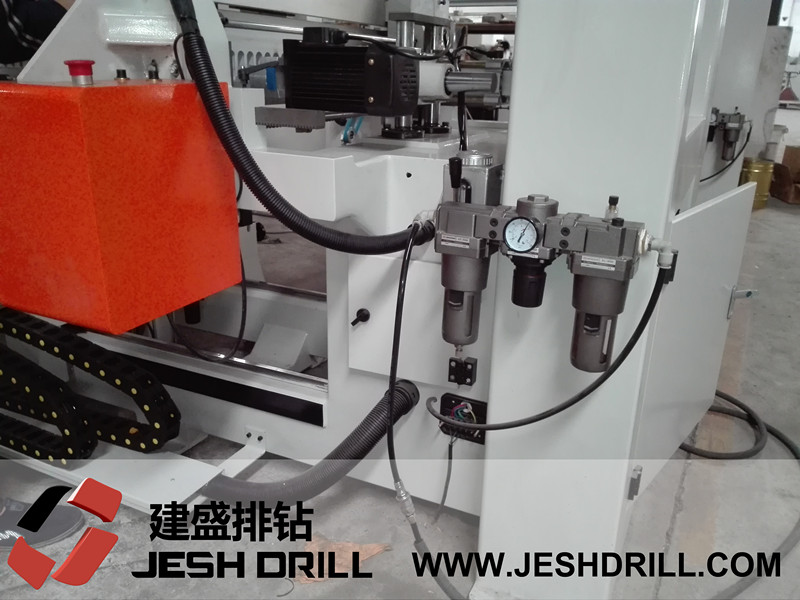

Air Pressure: 0.5-0.6mpa
Motor Voltage: 380V, 50Hz
Total Power: 6 kW
Net Weight: about 1100kg
Overall Dimensions: 3800×2500×1650mm

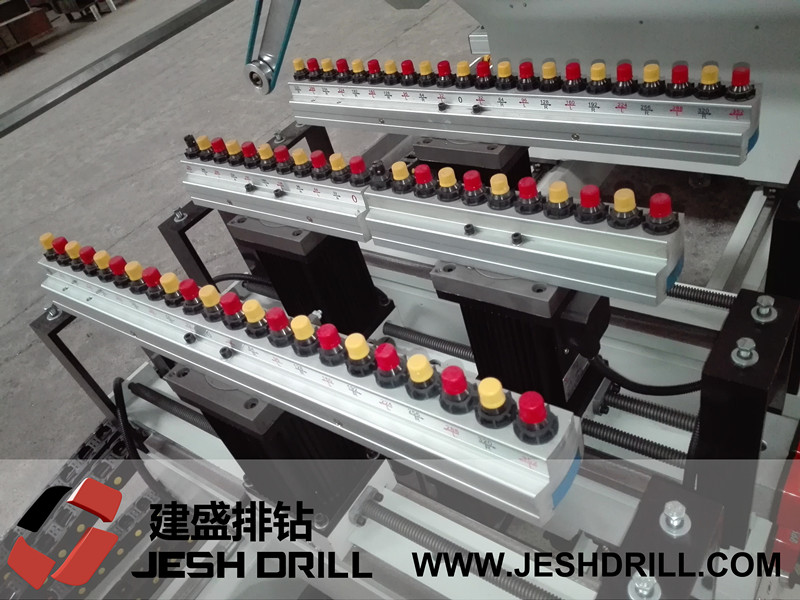

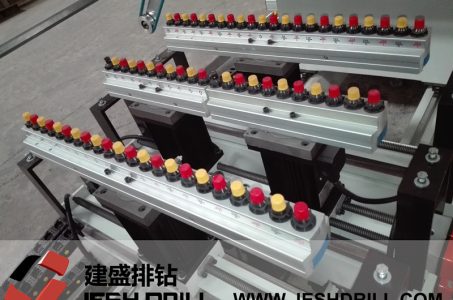

Qty. Of Vertical Down Drilling Rows: 3 rows
