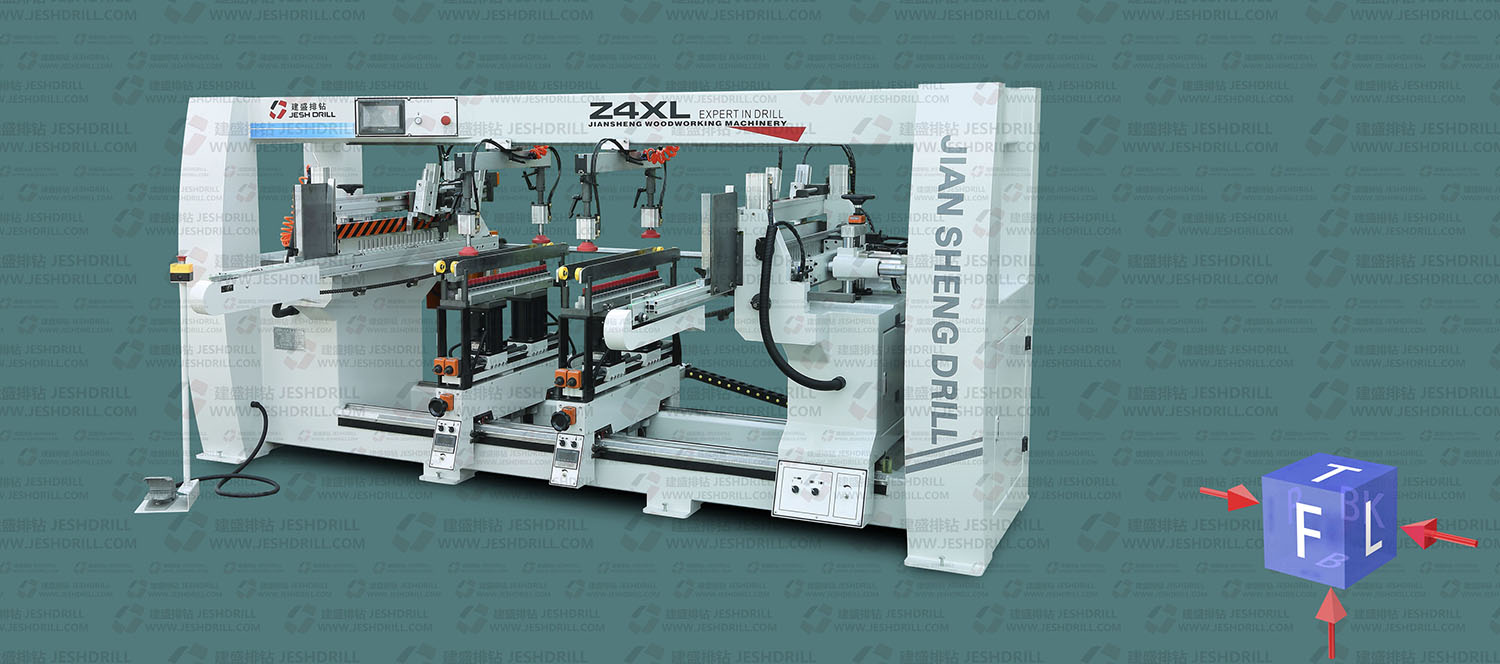

Four line boring machine
Max. Center Distance Between Holes: L×B=1500mm×672mm
Min. Center Distance Between Holes: L*B=220mm×32mm
Max. Processing Length: 1500mm
Min. Processing Length: 220mm
Plate Thickness: 12-40mm
Total Number Of Spindles: 88 pcs
Max. Drilling Dia.: 35mm (single bit) 13mm (multi bits)
Max. Drilling Depth: 50mm
Installation Dia. Of Drill Bit Shaft: 10mm
Knife Installation Length: 57mm/70mm
Spindle Speed: 2840rpm
Qty. Of Horizontal Left & Right Drilling Rows: 2 rows
Air Pressure: 0.5-0.6mpa
Motor Voltage: 380V, 50Hz
Total Power: 6.5 kw
Net Weight: about 1500kg
Overall Dimensions: 3400×2250×1650mm
Qty. Of Vertical Up Drilling Rows: 2 rows
Single Plate Feeding Speed: 13-16 pcs/min
Double Plate Feeding Speed: 20-26 pcs/min
Single Plate Processing Width: 60-630mm
Double Plates Processing Width: 60-320mm
Feeding Mode: Belt Feeding
