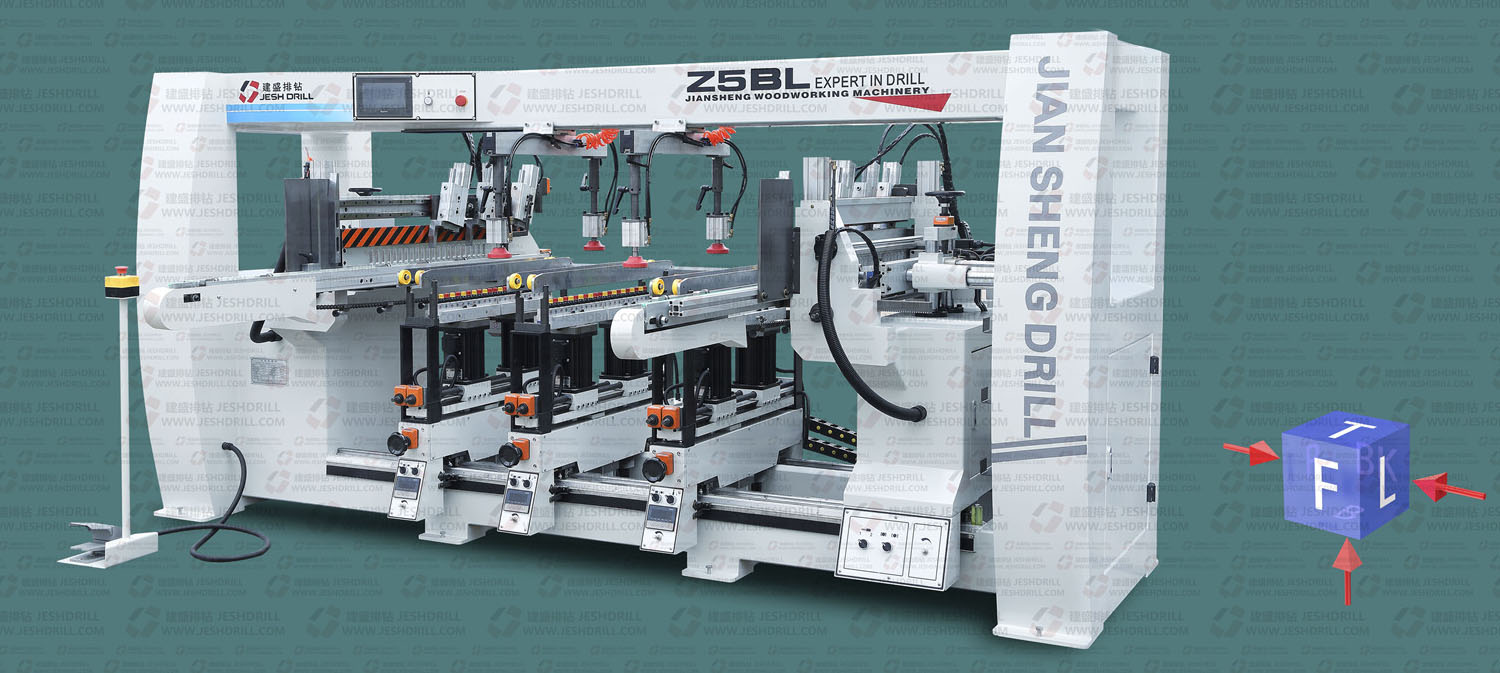

FIVE FACES FIVE ROWS DRILLING MACHINE
Stopper
3 set of Stoppers, can process 3 plates per time
Single plate processing width: 50-630mm
Double plates processing width: 50-220mm
Triple plates processing width: 50-150mm

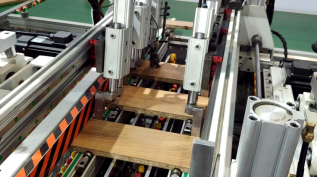

Vertical Presser
Fix wood board vertically, and can move to right side if don’t need it in the processing
Vertical drill Head
The vertical drill head can be adjusted by 0 ° and 90 °. There are 3 pcs vertical drill-row, each of drill-row has 2pcs drill-block which has 11 spindles

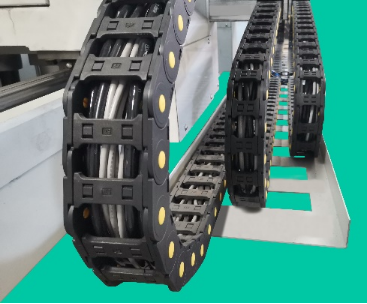

Drag chain trunking
The drag chain trunking is beautiful and can effectively protect the cable.
Control
Use PLC and touchscreen as controller, easy for operation

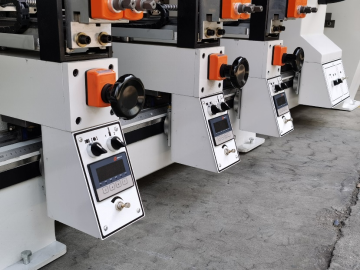

Digital display
Use digital display for reading , accurate and convenient for position adjusting

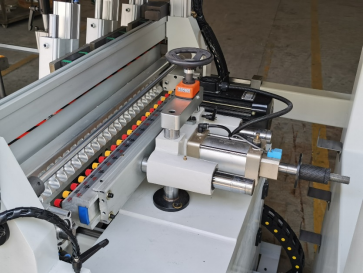

Vertical drilling motor adjusting
Linear guide rail + ball-screw is used for moving the vertical drilling motor
Horizontal drill-row
Set 22-spindle drill-row on left and right side of the machine for horizontal drilling

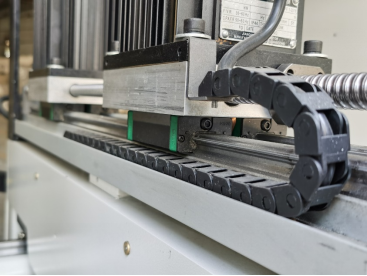

Vertical drill-row moving
Use Linear guide rail for vertical drill-row position adjusting.
Stacker
Machine set stacker on back,
Max. capacity: 900mm from ground
