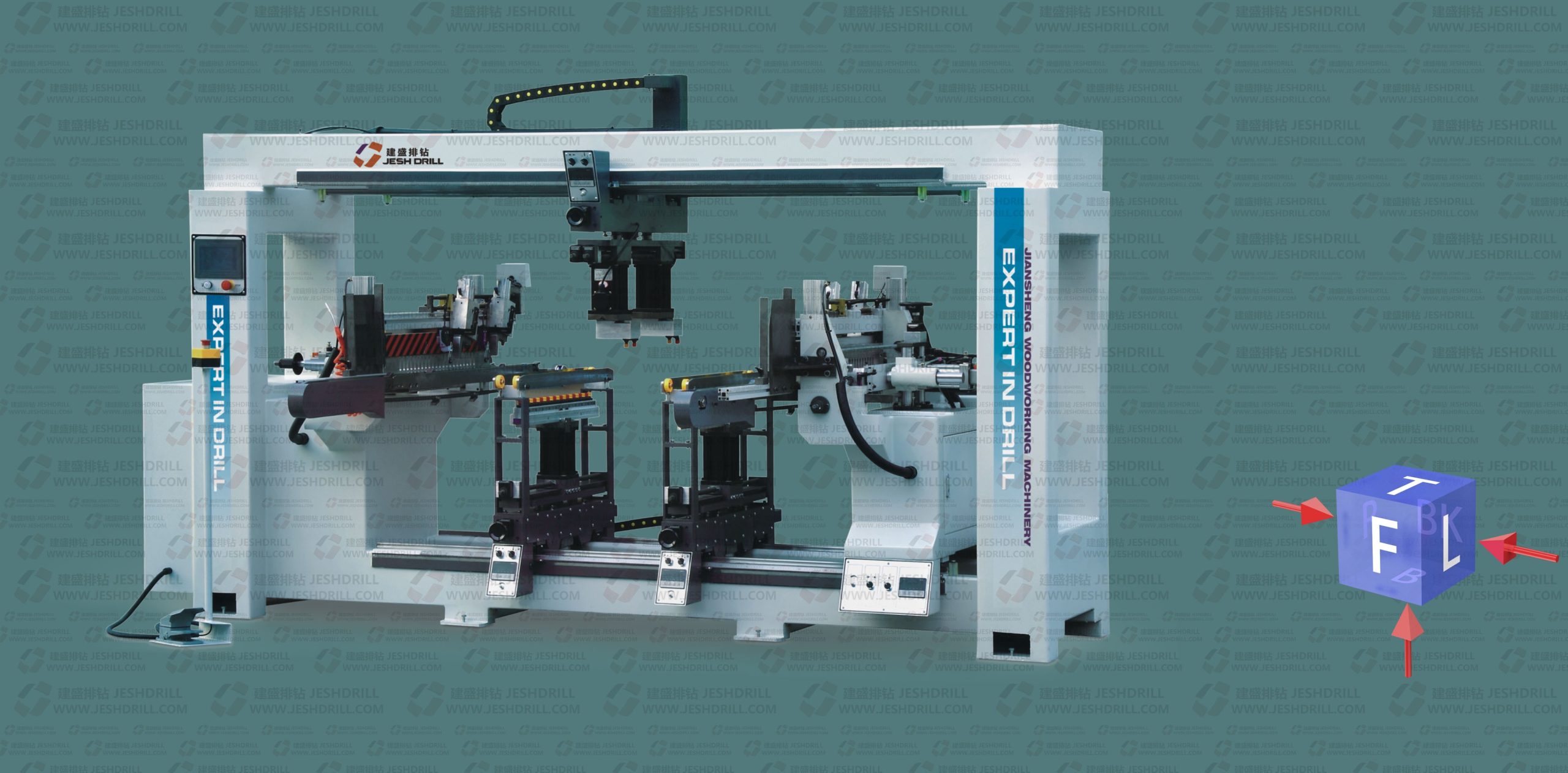

Woodworking five line boring machine
Max. Center Distance Between Holes: L×B=1500mm×672mm
Min. Center Distance Between Holes: L×B=220mm×32mm
Max. Processing Length: 1500mm
Min. Processing Length: 220mm
Plate Thickness: 8-50mm
Total Number Of Spindles: 96 pcs
Max. Drilling Dia.: 35mm (single bit), 13mm (multi bits)
Max. Drilling Depth: 50mm
Installation Dia. Of Drill Bit Shaft: 10mm
Knife Installation Length: 57mm / 70mm
Spindle Speed: 2840rpm
Qty. Of Horizontal Left & Right Drilling Rows: 2 rows
Qty. Of Vertical Down Drilling Rows: 1 row
Qty. Of Vertical Up Drilling Rows: 2 rows
Air Pressure: 0.5–0.6 mpa
Motor Voltage: 380V, 50Hz
Total Power: 12.6 kW
Net Weight: about 1100kg
Overall Dimensions: 3400×2250×2200mm
Single Plate Processing Speed: 13–16 pcs/min
Single Plate Processing Width: 60–630mm
Double Plates Processing Width: 60–280mm
Double Plates Processing Speed: 20–26 pcs/min
Feeding Mode: Auto Feeding
