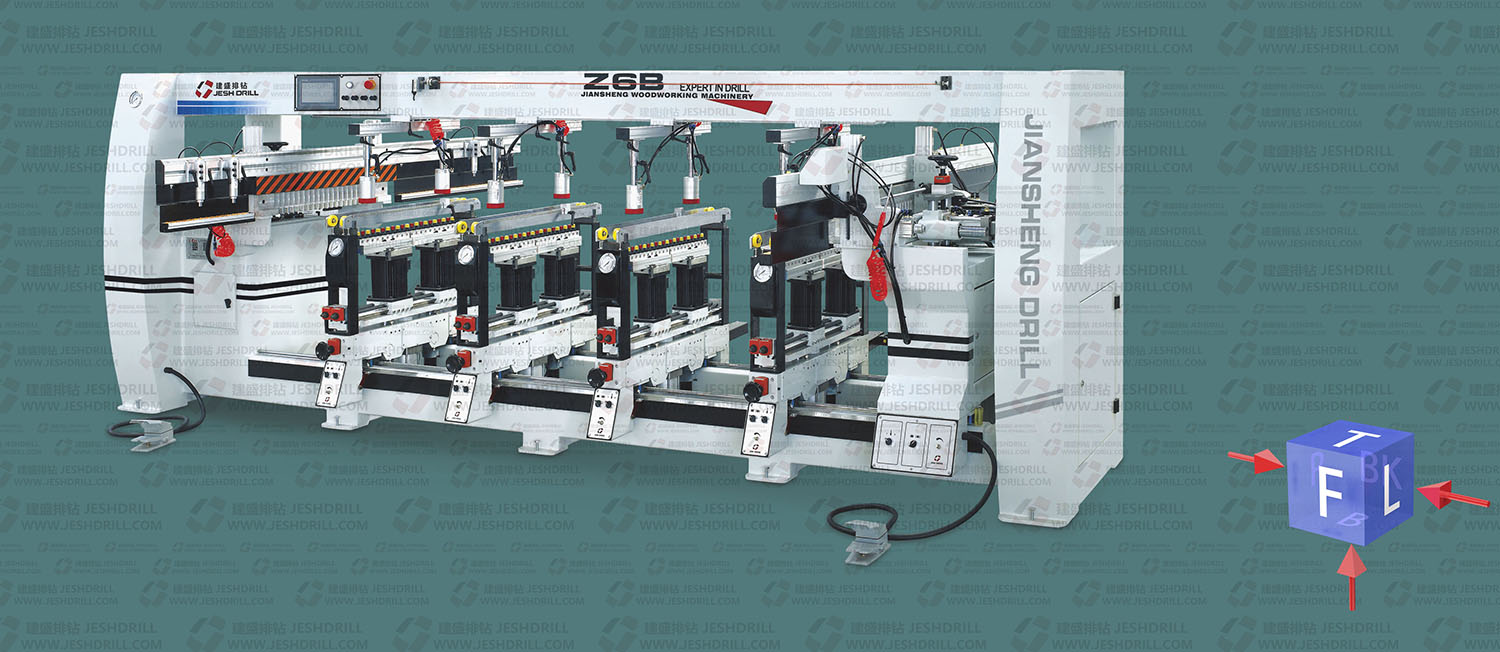

Woodworking six lines boring machine
Max. Center Distance Between Holes: L×B=2450mm×640mm
Min. Center Distance Between Holes: L×B=220mm×32mm
Max. Processing Length: 2450mm
Min. Processing Length: 220mm
Plate Thickness: 8-80mm
Total Number Of Spindles: 132 pcs
Max. Drilling Depth: 50mm
Installation Dia. Of Drill Bit Shaft: 10mm
Knife Installation Length: 57mm/70mm
Spindle Speed: 2840rpm
Qty. Of Horizontal Left & Right Drilling Rows: 2 rows (Right Can Turn Up 90°)
Air Pressure: 0.5-0.6mpa
Max. Drilling Dia.: 35mm (single bit), 13mm (multi bits)
Motor Voltage: 380V, 50Hz
Total Power: 15 kw
Net Weight: about 1600kg
Overall Dimensions: 4300×2500×1650mm
Qty. Of Vertical Up Drilling Rows: 4 rows
