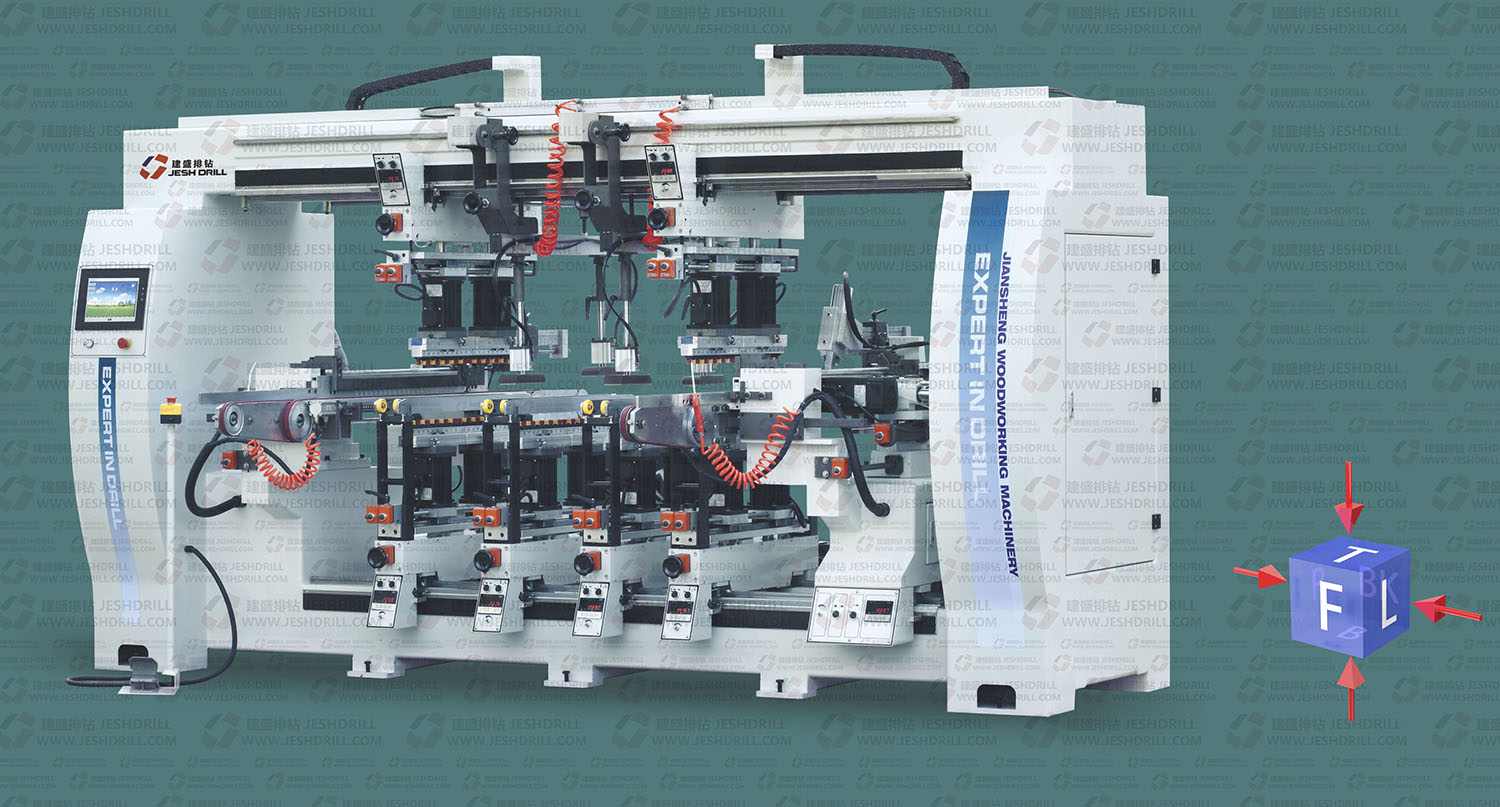

EIGHT ROWS DRILLING MACHINE
Max. Center Distance Between Holes: L*B=2500mm*672mm
Min. Center Distance Between Holes: L*B=250mm*32mm
Max. Processing Length: 2500mm
Min. Processing Length: 250mm
Plate Thickness: 8–50mm
Total Number Of Spindles: 176 pcs
Qty. Of Vertical Drilling Row On Bottom: 6
Single Bit Max. Drilling Dia: 35mm
Multi Bits Max. Drilling Dia: 13mm
Max. Drilling Depth: 50mm
Installation Dia. Of Drill Bit Shaft: 10mm
Knife Installation Length: 57mm / 70mm
Spindle Speed: 2840 rpm
Qty. Of Horizontal Drilling Row on Left and Right: 2
Air Pressure: 0.5–0.6 mpa
Motor Voltage: 380V / 60Hz
Total Power: 22.1 kW
Net Weight: about 2700 kg
Overall Dimensions: 5000×2250×1650mm
Processing Speed: 13–16 pcs/min
